How to Make a Slope Graph in Excel

This is the lesson about how to insert Slope Graph in Excel. You, and I are going to create a slope graph chart together, in a simple step-by-step format.

What is Slope Graph

Slope graph shows a comparison of the change in value at two points in time. Slope Graph could be useful for you when you need to show the data which increase (of decrease) in time.

Examples include:

  • comparison of the tax rate in all South American countries between 2000 and 2022
  • support for the president in the East Coast States on election day and two years later
  • sales in the company’s stores before the commencement of the promotional campaign and one month after its completion
  • costs in the departments of the company before and after cost cutting.

The purpose of creating a slope chart is to show the change of a given phenomenon over time:

  • costs decreased in all departments of the company
  • support for presidents is lower two years after the elections than on election day
  • the promotional campaign caused the sales to increase in all stores

Slopa graph can also be used to show disproportions or show an existing diagram:

  • sales after the promotion fell in all stores in the countryside, but increased in all of the cities
  • after cutting costs, you can see a decrease in costs in investment departments, but an increase in production departments

To create a slope chart, you need data in two columns. The number of lines can be much larger.

See also  How to Make a Progress Chart in Excel

If you have more than one column, you will simply create a line graph.

Data preparation

To create Slope Graph in Excel you need to layout your data first.

Slope Graph layout data

Select the data.

mark data slope

Inserting Slope Graph

Click insert (1), and click on line chart (2).

insert line chart

Click on Design tab, and Switch Row/Column

Slope Graph switch row column

On design tab, click on Quick Layout, and choose layout.

quick layout slope

Delete the lines.

slope chart delete lines

Slope graph formatting

Click on y axis, and press delete on keyboard. Repeat the step with axis title showing beside the y axis, and chart title.

delete axis Slope Graph

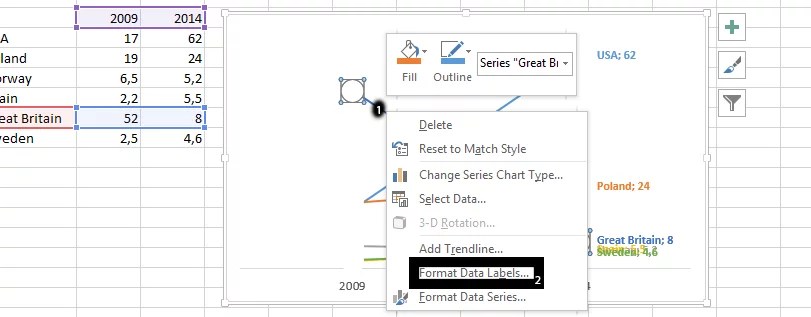

Right click on one of the series, and click on format data labels.

format data labels slope

Click on label options, chart symbol, label options, and all you need to do is check value.

Slope Graph check value

Note: Show leader Lines is already marked. You should leave it like that.

Double click on data label that are overlapping or need to be moved to create space for overlapping values, and move it so all labels and value shows.

move labels slope

Click on all the soft edges, and press delete on your keyboard.

slope chart soft edge

Your Slope graph chart will look like this:

slope graph chart

You can download free Slope Graph template here
